PET Blowing Filling Capping Machine

A Single System from PET Preform to Filled Bottles

PET Blowing Filling Capping Machine
Request a Quote

Building on more than 30 years of experience in continuously engineering and producing bottle manufacturing and filling equipment, Jinrong is a trustworthy company that has the ability to produce automatic 3-in-1 PET bottle blowing, filling and capping machines suited for purified water, mineral water, fruit juice, tea, and more beverage. This PET blower-filler-capper machine is an integrated filling system incorporating blow molding, filling and capping functions, various models of different production capacities are available from 12,000 to 36,000 bottles per hour. Thanks to an array of features including compact structure, user-friendly control system, easy operation and high automation, this PET blowing filling capping machine has been highly appreciated by our customers worldwide.

Specifications
Model Production output (500ml PET bottle) Diameter Overall dimensions (L×W×H) Power Weight
CGX 8-24-8
12000 b/h 25-38 9700×2750×3250mm 269kW 16000kg
CGX 10-40-10
17000 b/h 25-38 11100×4250×2200mm 360kW 20000kg
CGX 12-40-10
18000 b/h 25-38 11100×4250×3350mm 360kW 21000kg
CGX 14-50-18
22000 b/h 25-38 12200×4300×3350mm 360kW 24000kg
Features
  • The machine can handle bottle blow molding, filling and capping for a variety of beverages, such as purified water, mineral water, fruit juices and tea;
  • Production output ranges from 12,000 to 36,000 bottles per hour;
  • Bottle volume: 200ml-2000ml;
  • Bottle type: PET bottles;
  • Cap type: plastic screw caps, sport closures, aluminum caps;
  • Rotary rinser is suitable for cleaning various types of empty bottles, the design of rinsing station allows for easy bottle changeover and height adjustment;
  • Automatic capping system is designed with advanced technology of magnetic clutch capping head with easily adjustable variable torque, which secures cap tightening quality;
Highlights
  • Stable Bottle Blowing System
    Linkage mechanism is used at bottom mold clamping unit, the preform is blown by blowing valve and then subjected to inflation molding.
  • Servo Driven Positioning System
    Schneider servo motor is adopted to ensure high efficiency positioning, high positioning accuracy, quick response and good stability.
  • Energy-Efficient Heating System
    During the heating process, PET preforms are heated evenly due to a symmetrical heat distribution. The heating power will be adjusted automatically to ensure the preform temperature at the required value.
  • Fully Automatic Feeding System
    The feeding system automatically conveys preforms from the hopper, and ejects unqualified preforms.

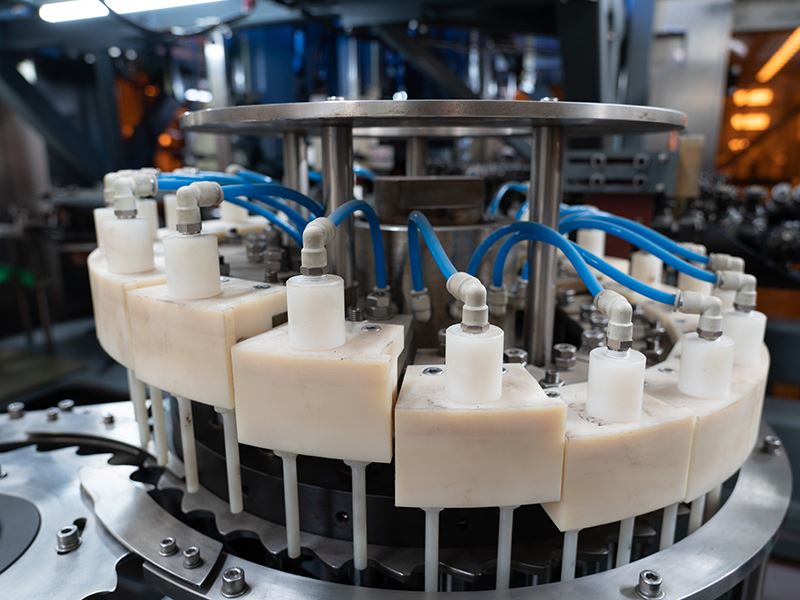

Machine Details
  • PET Blowing Filling Capping Machine
  • PET Blowing Filling Capping Machine
  • PET Blowing Filling Capping Machine
  • PET Blowing Filling Capping Machine
  • PET Blowing Filling Capping Machine
  • PET Blowing Filling Capping Machine
As an experienced manufacturer of liquid filling machines, Jinrong provides not only a wide variety of beverage filling equipment but also custom solutions adapted to your liquid or beverage packaging. With everything from liquid fillers to bottle labeling and packaging machines, we are able to provide complete liquid filling lines for almost any liquid packaging application, such as mineral water bottling line, soft drink canning line and fruit juice filling line. A complete beverage filling line consists of much more than just liquid filling machine or capping machine, Jinrong can help you fill the gap by offering technical support and after sales service. Please contact our experts to learn more about our liquid and beverage filling solutions.
  • Tags:
  • bottled water packing machine
  • bottle pucking machines
  • cap feeders
  • bottle filling equipment
  • plastic bottle manufacturing
Get in Touch
Other Machines
    1. Automatic Water Bottling Machine (2-10L)
    2. Automatic Water Bottling Machine (2-10L)
    1. Semi-Automatic Linear Bottle Blowing Machine
    2. Semi-Automatic Linear Bottle Blowing Machine

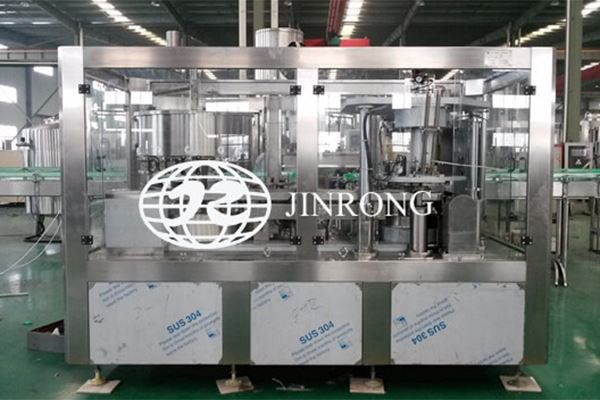

    1. Non-Carbonated Drink Canning Machine
