Linear Bottle Blowing Machine

Semi-Automatic Linear Bottle Blowing Machine

Linear Bottle Blowing Machine

Linear Bottle Blowing Machine

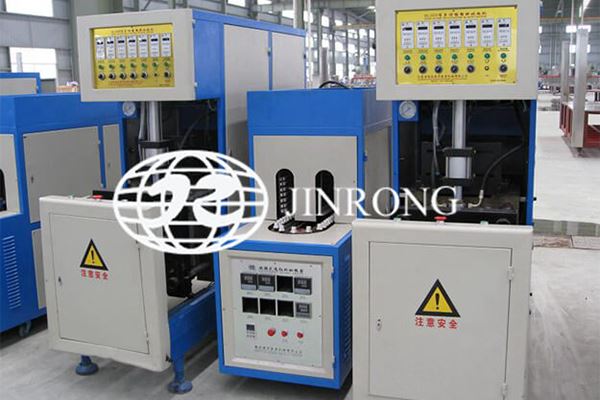

Semi-Automatic Linear Bottle Blowing Machine

The semi-auto linear blow molding machine is ideally suited for small-batch production of plastic bottles and containers used in packaging applications for food, pharmaceutical, cosmetic, pesticide, chemical and soft drinks. This bottle molding machine is perfect for applications aiming to obtain savings in energy, space, investment cost, as well as high production efficiency.

Request a Quote
Specifications
Model JR-8Y
Container Product material PET
Volume 0.1L-2L
Theoretical output 1200 b/h
Preform length 15mm-350mm
Preform inner diameter Ø5mm-38mm
Mold Max. mold plate size (L×W) 350x380mm
Max. mold thickness 180mm
Clamping force 45kN
Mold opening stroke 160mm
Machine Machine dimensions (L×W×H) 160x60x161cm
Machine weight 500kg
Heater (L×W×H) 187x63x145cm
Heater weight 250Kg
Power 17.5kW
Features
  • Equipped with microcomputer control unit, easy to operate;
  • Infrared heating system adopts imported SCR controlled IR heating tube;
  • Reliable three-phase motor is used to control moving part, and driven by frequency converter;
  • There are two left/right cylinders to control stretching and sealing, the stretching length is adjustable automatically; Air blowing retention time can be adjusted to ensure better bottle blowing process;
  • The waste air is exhausted through a silencer inside the bottle blower machine, thereby reducing noise to a minimum level;
  • Air storage unit and high/low pressure-reducing valves are configured to provide better performance;
Related Products
  • Rotary Bottle Blowing Machine
  • Automatic Linear Bottle Blowing Machine
  • Semi-Automatic Linear Bottle Blowing Machine
As an experienced manufacturer of liquid filling machines, Jinrong provides not only a wide variety of beverage filling equipment but also custom solutions adapted to your liquid or beverage packaging. With everything from liquid fillers to bottle labeling and packaging machines, we are able to provide complete liquid filling lines for almost any liquid packaging application, such as mineral water bottling line, soft drink canning line and fruit juice filling line. A complete beverage filling line consists of much more than just liquid filling machine or capping machine, Jinrong can help you fill the gap by offering technical support and after sales service. Please contact our experts to learn more about our liquid and beverage filling solutions.
