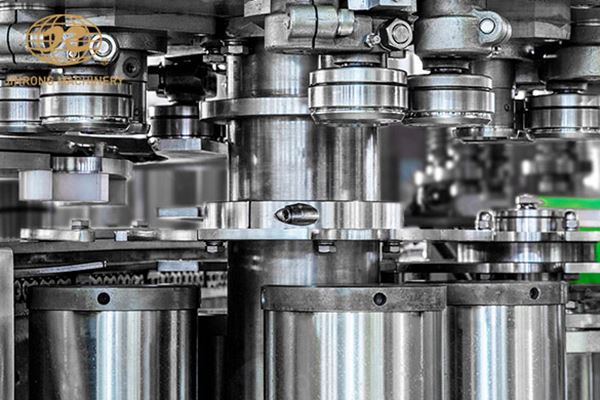

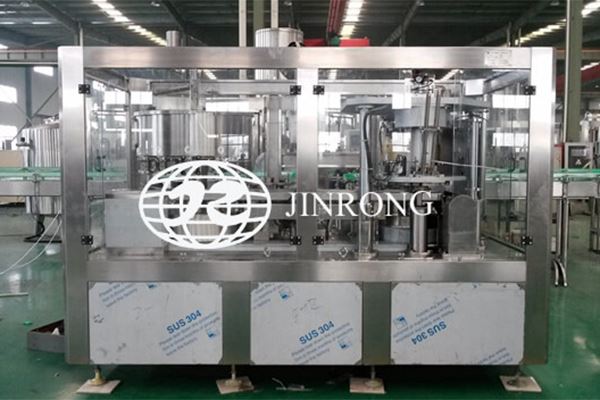

Our non-carbonated drink canning machine is designed for filling and seaming of tinplate cans with non-carbonated beverages such as fruit juices, teas and protein drinks.
| Model | Production output (330ml can) | Overall dimensions (L×W×H) | Power | Weight |
| DGC12-4 | 30-170 c/m | 2700×1400×1900MM | 5.5 kW | 3100 kg |
| DGC18-4 | 30-250 c/m | 3050×1750×1900 MM | 5.5 kW | 3800 kg |
| DGC24-6 | 50-300 c/m | 2750×1790×1900 MM | 7.5 kW | 4500 kg |
| DGC36-6 | 50-400 c/m | 3175×2230×1900 MM | 7.5 kW | 5000 kg |
| DGC48-8 | 100-600 c/m | 3650×2450×2100 MM | 11 kW | 7500 kg |
| DGC72-12 | 100-800 c/m | 3850×2450×2100 MM | 15 kW | 9500 kg |

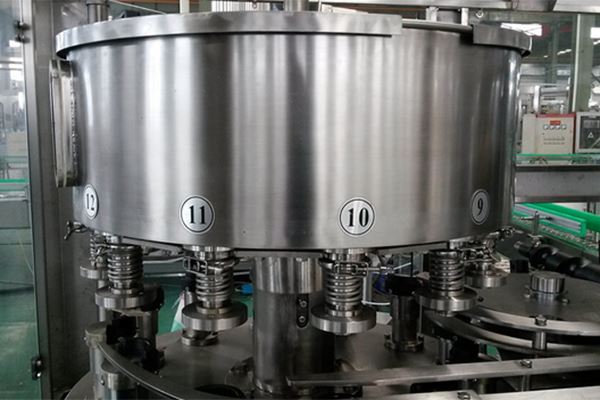

The can filler for non-carbonated beverage adopts gravity filling method, providing more stable and faster filling process thereby translating to a better productivity and yielding a higher profit than that of conventional liquid filler with equivalent capacity. The filling unit is featured by high automation level, allowing operator to control the system with ease.
Filled cans are conveyed to the seamer where can lids are placed and attached to the can bodies, and the cans are tightly seamed.
