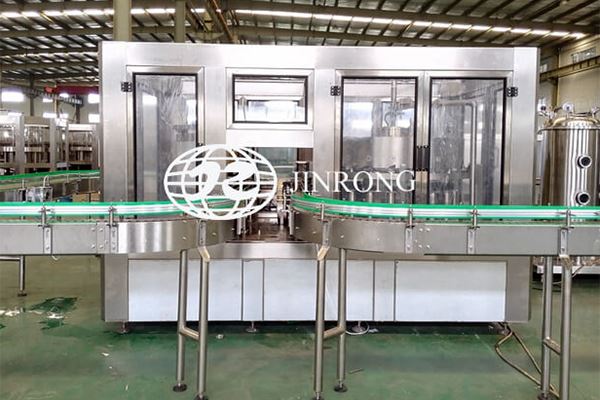

This automatic can filler seamer is designed typically for filling of carbonated beverages in PET or aluminum cans. The carbonated beverage canning machine comprises can filler and can seamer.
| Model | Production output (330ml can) | Overall dimensions (L×W×H) | Power | Weight |
| DGD06-1 | 15-30 c/m | 2520×1510×2070mm | 3.5 kW | 2600 kg |
DGD12-1 | 25-45 c/m | 2660×1660×2070mm | 3.5 kW | 3200 kg |
| DGD12-4 | 30-100 c/m | 2700×1700×2100mm | 5.5 kW | 4300 kg |
| DGD20-4 | 30-160 c/m | 3000×1900×2100mm | 5.5 kW | 6500 kg |
| DGD24-4 | 30-200 c/m | 3350×2150×2100mm | 5.5 kW | 7100 kg |
| DGD36-6 | 30-300 c/m | 3750×2500×2100mm | 7.5 kW | 8000 kg |
| DGD48-6 | 30-400 c/m | 4000×2800×2100mm | 11 kW | 9500 kg |

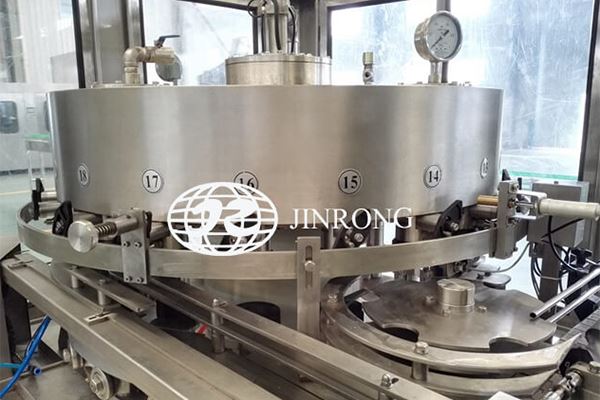

The can filler for carbonated beverage adopts counter pressure or Isobaric filling method. Empty cans are moved under filling heads centrally and then lifted and sealed, the filling valve opens simultaneously to allow liquid to flow into cans. Once the set liquid level is reached, the filling process stops automatically.
Filled cans are conveyed to the seamer where can lids are placed and attached to the can bodies, and the cans are tightly seamed.
