3-in-1 Automatic Carbonated Beverage Bottling Machine

Monoblock Rinser, Filler and Capper for Soft Drinks

This series of monoblock bottling machine is suitable for filling all kinds of carbonated drinks into PET or glass bottles. Our carbonated beverage filling machines are available in various speed ranging from 5,000 to 30,000 bottles per hour.

3-in-1 Automatic Carbonated Beverage Bottling Machine
Request a Quote
Videos
Basic Information
  • Bottle type: PET bottles, glass bottles
  • Cap type: plastic screw caps, aluminum caps, crown caps
  • Bottle volume: 200-2000ml
  • Washing method: adopting newly developed mechanical valve that precisely controls the rinsing fluid, without leakage of water
  • Filling method: isobaric filling system
  • Capping method:
    Plastic cap: magnetic clutch capping head is used for closing of plastic screw caps, the torque is easily adjustable for reliable cap closing quality
    Crown cap: capping force can be easily adjusted, ceramic material is used to protect caps from being damaged
    Aluminum cap: the cap closing system forms threads and seals aluminum caps onto bottles with exceptional ease and high tightness
  • View More
Specifications
Model Production output (500ml PET bottle) Overall dimensions (L×W×H) Power Weight
JR18-18-6D
5000 b/h 2800×2050×2200mm 3 kW 5500 kg
JR24-24-8D
8000 b/h 3100×2250×2800mm 4 kW 7000 kg
JR32-32-10D
10000 b/h 3600×2900×2900mm 5.5 kW 8500 kg
JR40-40-10D
13000 b/h 4250×3250×2900mm 7.5 kW 10000 kg
JR50-50-12D
16000 b/h 5200×3700×3000mm 11 kW 14000 kg
JR60-60-15D
20000 b/h 6300×4400×3000mm 11 kW 17000 kg
JR72-72-16D
26000 b/h 6900×4950×3000mm 11 kW 18000 kg
JR80-80-18D
30000 b/h 7600×5100×3000mm 15 kW 20000 kg
Features
  • Specially designed for rinsing, filling and capping of carbonated soft drinks;
  • CO2 pressure is accurately controlled, with stable liquid level;
  • Alarm system will be activated when bottles get blocked or overloaded, as well as in case of missing bottles and caps;
  • Equipped with PLC control and frequency converter to guarantee highly automatic production and smooth operation, and the touch screen panel enables all settings to be easily accessible;
Details
    1. Rinsing Station
    2. Rinsing Station
    3. Air conveyor transfers bottles into the machine with bottle neck clamping and bottle suspending methods, which can ensure fast bottle conveying without causing bottle deformation. The stainless steel gripper is featured by simple structure and easy adjustment, and the small contact surface minimizes the secondary contamination of bottle neck.

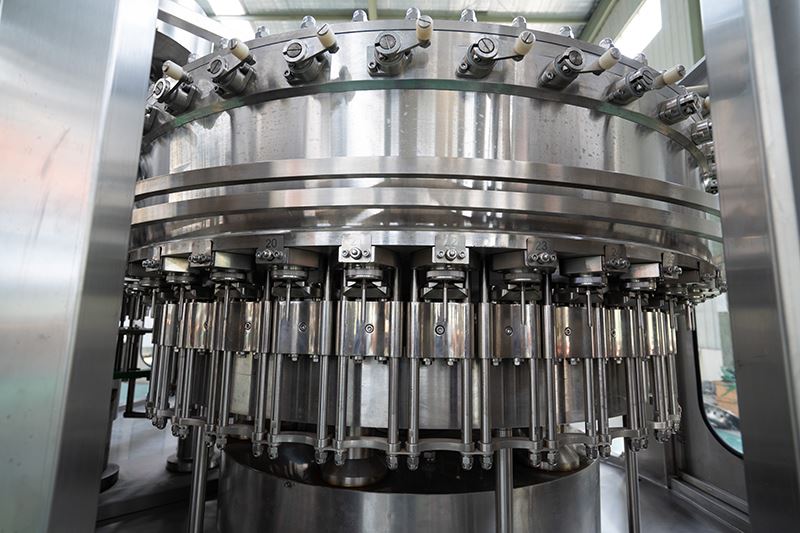

    1. Filling Station
    2. Filling Station

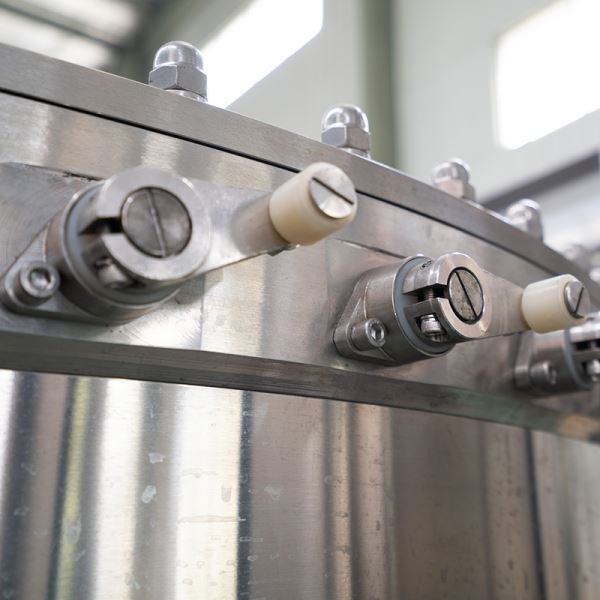

    3. Isobaric filling valve is adopted to provide high filling speed and accurate liquid level. Carbonated beverage filler uses stepless speed regulation and bottle guiding system has a simple structure, it means bottle size can be changed in an efficient and timely manner.

Machine Details
  • 3-in-1 Automatic Carbonated Beverage Bottling Machine
  • 3-in-1 Automatic Carbonated Beverage Bottling Machine
  • 3-in-1 Automatic Carbonated Beverage Bottling Machine
  • 3-in-1 Automatic Carbonated Beverage Bottling Machine
  • 3-in-1 Automatic Carbonated Beverage Bottling Machine
  • 3-in-1 Automatic Carbonated Beverage Bottling Machine
  • 3-in-1 Automatic Carbonated Beverage Bottling Machine
Related Products
  • Automatic Water Bottling Machine (200-2000ml)
  • Automatic Still Beverage Bottling Machine
  • Automatic Carbonated Beverage Bottling Machine
  • Automatic Beer Bottling Machine
  • Automatic Water Bottling Machine (2-10L)
  • Vinegar Filling Machine
  • 5-Gallon Water Bottle Filling Machine
As an experienced manufacturer of liquid filling machines, Jinrong provides not only a wide variety of beverage filling equipment but also custom solutions adapted to your liquid or beverage packaging. With everything from liquid fillers to bottle labeling and packaging machines, we are able to provide complete liquid filling lines for almost any liquid packaging application, such as mineral water bottling line, soft drink canning line and fruit juice filling line. A complete beverage filling line consists of much more than just liquid filling machine or capping machine, Jinrong can help you fill the gap by offering technical support and after sales service. Please contact our experts to learn more about our liquid and beverage filling solutions.
