3-in-1 Automatic Still Beverage Bottling Machine

Monoblock Washing, Filling and Capping Machine for Juice, Tea and Milk

Our automatic still beverage bottling machine is a perfect solution for filling non-carbonated drinks such as juice and milk into plastic or glass bottles. The three processes of bottle washing, filling and capping are done in the same monoblock rotary filling system. This 3-in-1 filling machine is an ideal automatic liquid filling equipment for beverage companies to bottle the vast majority of non-carbonated beverages that can be found on the store shelves. It can fill at rates up to 40,000 bottles per minute.

3-in-1 Automatic Still Beverage Bottling Machine
Request a Quote
Basic Information
  • Bottle type: PET bottles, glass bottles
  • Cap type: plastic screw caps, sport closures, aluminum caps
  • Bottle volume: 200-2000ml
  • Washing method: adopting newly developed mechanical valve that precisely controls the rinsing fluid, without leakage of water
  • Filling method: slight negative pressure filling system ensures precise control of liquid level in the container
  • Capping method: magnetic clutch capping head is used for closing of plastic screw caps and sport closures, the torque is easily adjustable for reliable cap closing quality, while the aluminum cap closing system forms threads and seals aluminum caps onto bottles with exceptional ease and high tightness
  • View More
Specifications
Model Production output (500ml PET bottle) Overall dimensions (L×W×H) Power Weight
JR14-12-4
3000 b/h 2400×1900×2800mm 3 kW 4000 kg
JR16-16-5
6000 b/h 2600×1900×2200mm 3 kW 4500 kg
JR18-18-6
8000 b/h 2800×2050×2200mm 3 kW 5000 kg
JR24-24-8
12000 b/h 3100×2250×2800mm 4 kW 6500 kg
JR32-32-10
15000 b/h 3600×2900×2900mm 5.5 kW 8000 kg
JR40-40-10
18000 b/h 4250×3250×2900mm 7.5 kW 9500 kg
JR50-50-12
22000 b/h 5200×3700×3000mm 11 kW 13000 kg
JR60-60-15
25000 b/h 6300×4400×3000mm 11 kW 16000 kg
JR72-72-16
32000 b/h 6900×4950×3000mm 11 kW 17000 kg
JR80-80-18
36000 b/h 7600×5100×3000mm 15 kW 19000 kg
JR100-100-20
40000 b/h 9800×6600×3000mm 18.5 kW 25000 kg
Features
  • Specially designed for filling non-carbonated beverages such as fruit juice, tea, milk, sports drinks;
  • Combining washing, filling and capping functions in one machine;
  • Configured with temperature control system and adjustable return flow;
  • There is no dead corners for sterilization of inlet and outlet openings of filling valve, ensuring the internal filling valve is sterile; The filling valve is equipped with automatic CIP cleaning cup;
  • Bottle mouths are cleaned by purified water of RO system prior to capping process, efficiently avoiding mold and mildew on bottle mouths;
  • Equipped with PLC control and frequency converter to guarantee highly automatic production and smooth operation, and the touch screen panel enables all settings to be easily accessible;
Configurations
  • Frequency converter: Siemens
  • PLC: Siemens
  • Circuit breaker: Siemens
  • Circuit contactor: Siemens
  • Thermal relay: Siemens
  • Proximity switch: Omron
  • Fiber switch: Omron
  • Touch screen: Kinco/Siemens
  • Pneumatic components: AIRTAC/FESTO
  • Stainless steel: POSCO
  • PET Bottle
  • Glass Bottle
Details of PET Bottle Filling Machine
    1. Washing Station (PET Bottle)
    2. Washing Station (PET Bottle)

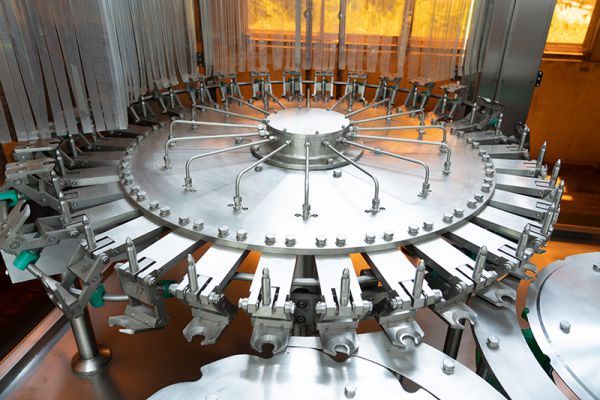

      • Rotary bottle rinser is used in this automatic beverage filling machine, it enables the inside of empty plastic containers to be thoroughly cleaned prior to filling process.
      • PET bottles are fed into the monoblock machine by means of indexing star wheel and grasped by bottle neck gripper that turns bottles upside-down centrally above the spraying nozzle to rinse the inside of bottle with sterile water. Following rinsing, the bottle is then allowed to drip, automatically re-inverted and transferred to the filling turret through the outfeed star wheel.
      • All parts in contact with rinsing fluid and exterior wall cladding are made from high quality stainless steel.
      • The stainless steel gripper is featured by simple structure and easy adjustment, and the small contact surface minimizes the secondary contamination of bottle neck.
    1. Filling Station (PET Bottle)
    2. Filling Station (PET Bottle)
      • The filling valve performs filling under slight negative pressure (light vacuum), resulting in high filling efficiency and high liquid level precision. The vacuum filling valve has no internal spring, therefore providing great convenience for cleaning of valve inside. The filling temperature is well controlled due to optimum return flow when there is no bottle or during downtime hours.
      • Filling volume can be slightly adjusted, the liquid level of filled bottles is constant.
      • Gear transmission mechanism is used to provide high efficiency, low noise level, long service life, and easy maintenance.
      • Speed regulation is achieved by frequency converter.
    1. Capping Station (PET Bottle)
    2. Capping Station (PET Bottle)
      • Bottle caps discharged from cap sorter are placed in the right position and screwed on filled bottles, and then bottles are transferred to the downstream process via conveyor.
      • The pick & place system performs cap closing by electromagnetic capping heads, avoiding the collision between bottles during the capping process.
      • The capper structure is constructed with 304/316 stainless steel.
      • The capping process will stop automatically when there is no bottle.
      • High capping efficiency can be guaranteed, the failure rate is less than 0.2%.
Details of Glass Bottle Filling Machine
    1. Washing Station (Glass Bottle)
    2. Washing Station (Glass Bottle)
      • Glass bottles enter the monoblock machine by air conveyor.
      • Rinsing heads are all made from 304/316 stainless steel, the design of water spraying contributes in saving more water and providing better cleaning effect.
      • The 304/316 stainless steel bottle gripper has plastic pad, thus protecting glass bottles from cracking during washing.
      • The washing pump is built using 304/316 stainless steel, ensuring the high durability when used in large-volume filling machine.
    1. Filling Station (Glass Bottle)
    2. Filling Station (Glass Bottle)
      • The 304/316 stainless steel nozzle allows for high precision filling of liquid products.
      • Filling volume can be slightly adjusted, the liquid level of filled bottles is constant.
      • All parts in contact with liquid are made of 304/316 stainless steel, and the surface has been sanitary polished without any dead corners, easy to clean.
      • Filling pump is made from 304/316 stainless steel.
      • High-efficiency spraying nozzle for thoroughly washing of bottles, greatly saving rinsing water.
    1. Capping Station (Glass Bottle)
    2. Capping Station (Glass Bottle)
      • Bottle caps discharged from cap sorter are placed in the right position and screwed on filled bottles, and then bottles are transferred to the downstream process via conveyor.
      • The pick & place system performs cap closing by electromagnetic capping heads, avoiding the collision between bottles during the capping process.
      • The capper structure is constructed with 304/316 stainless steel.
      • The capping process will stop automatically when there is no bottle.
      • High capping efficiency can be guaranteed, the failure rate is less than 0.2%.
Machine Details
  • 3-in-1 Automatic Still Beverage Bottling Machine
  • 3-in-1 Automatic Still Beverage Bottling Machine
  • 3-in-1 Automatic Still Beverage Bottling Machine
  • 3-in-1 Automatic Still Beverage Bottling Machine
  • 3-in-1 Automatic Still Beverage Bottling Machine
  • 3-in-1 Automatic Still Beverage Bottling Machine
Related Products
  • Automatic Water Bottling Machine (200-2000ml)
  • Automatic Still Beverage Bottling Machine
  • Automatic Carbonated Beverage Bottling Machine
  • Automatic Beer Bottling Machine
  • Automatic Water Bottling Machine (2-10L)
  • Vinegar Filling Machine
  • 5-Gallon Water Bottle Filling Machine
